FRONT-SERVICE INDOOR LED VIDEO WALL
SF Series
Slim cabinets. Simpler installation planning.
Bring a large digital canvas into retail stores, hotel lobbies, meeting rooms and other commercial interiors. SF Series combines a 33 mm cabinet, a lightweight die-cast aluminum design and front maintenance with six cabinet formats to help fit the screen to the space.
- 33 mm / approx. 1.30 in cabinet depth
- Front access for installation and service planning
- Six cabinet sizes based on 250 × 250 mm modules
- P1.25 to P3.91 options for different viewing requirements
- 3,840 Hz refresh and 14/16-bit grayscale options
- Indoor IP31 system for fixed commercial displays
A slim cabinet that works with the interior
A commercial screen has to fit more than the image on the wall. Its depth affects the surrounding finishes, mounting arrangement and usable room space. At 33 mm, the SF cabinet provides a slim starting point for the complete installation.

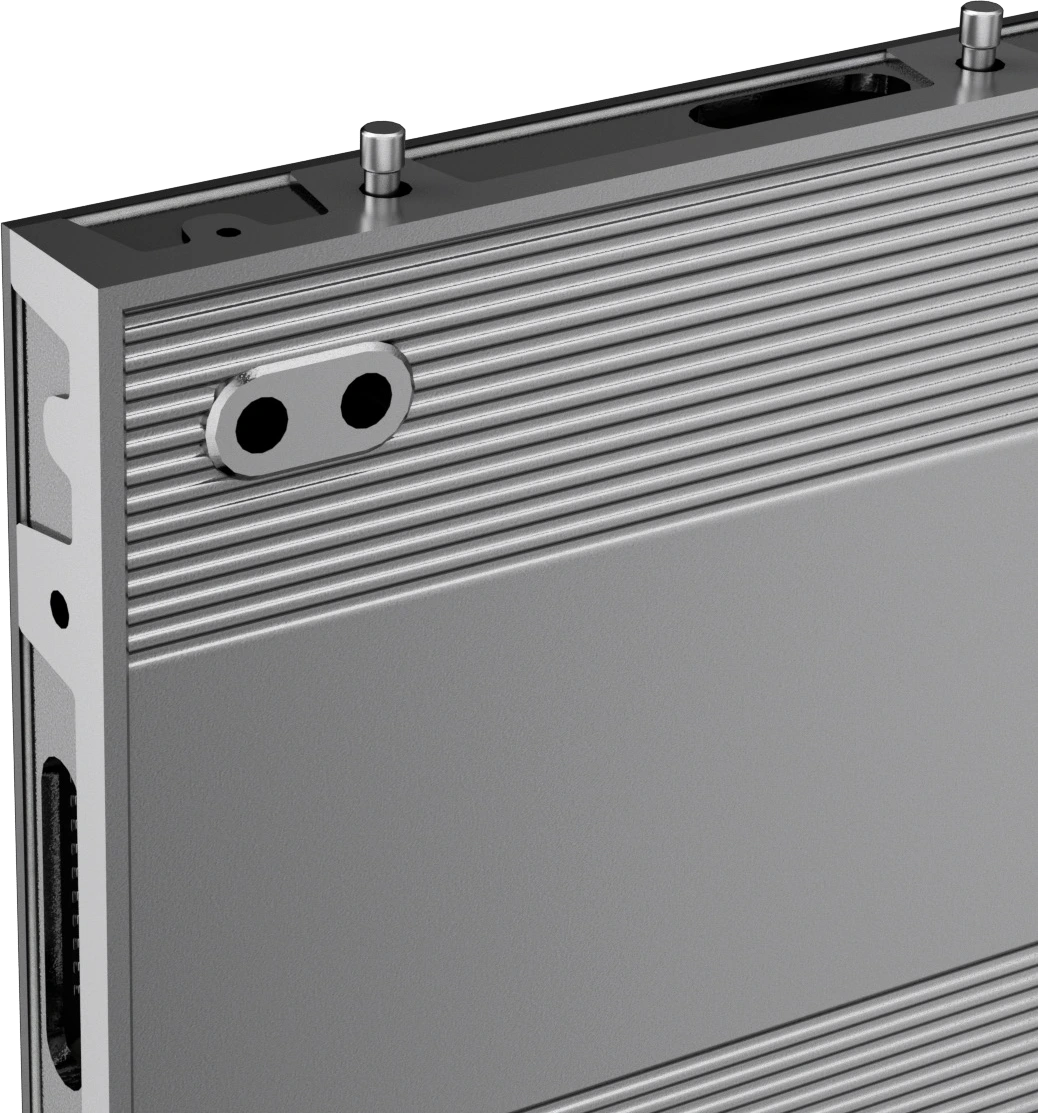

The die-cast aluminum housing includes reinforcing ribs to support cabinet flatness. Fixed internal power interfaces and accessible cabinet components help make the installation workflow more straightforward.
Front maintenance for permanent display walls
SF is built for front access, making it a useful option where the display sits close to a wall and rear access is limited. Modules can be reached from the display side using the approved service procedure.
For retail and hospitality projects, this lets the maintenance approach be considered alongside the interior layout. Allow the required ventilation, cable routes, service space and mounting depth in the finished design.
Six formats. More freedom to fit the space.
Cabinet widths of 500, 750 and 1000 mm combine with heights of 250 or 500 mm. A shared 250 × 250 mm module format supports multiple screen proportions, from a wide promotional display to a presentation wall.
For U.S. projects, the cabinet formats are metric. Use the approximate inch conversions below for early planning, then confirm the final dimensions and pixel map with VTLED.
| Cabinet size | Approx. width × height (in) | Modules (W × H) |
|---|---|---|
| 500 × 250 mm | 19.69 × 9.84 | 2 × 1 |
| 750 × 250 mm | 29.53 × 9.84 | 3 × 1 |
| 1000 × 250 mm | 39.37 × 9.84 | 4 × 1 |
| 500 × 500 mm | 19.69 × 19.69 | 2 × 2 |
| 750 × 500 mm | 29.53 × 19.69 | 3 × 2 |
| 1000 × 500 mm | 39.37 × 19.69 | 4 × 2 |
Creative and right-angle layouts are shown in the source brochure. Ask VTLED to confirm the compatible cabinet versions and hardware for a custom shape.

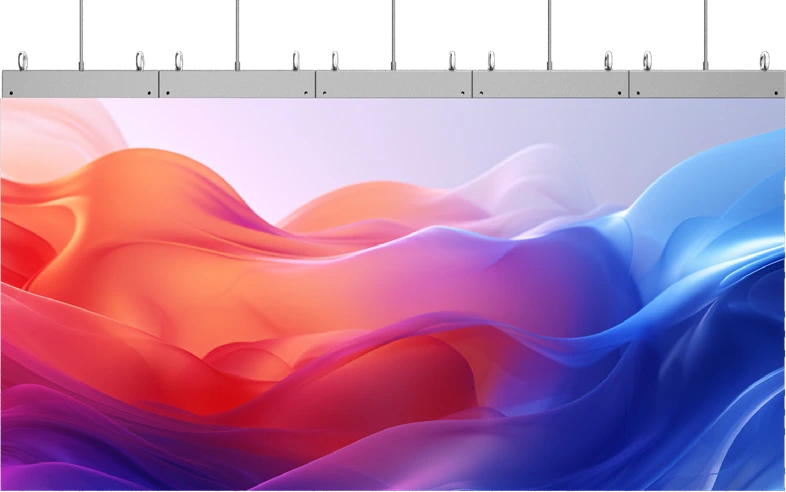

Wall mounted, suspended or integrated
The system supports several installation arrangements, including wall mounting, hanging, upright support and all-in-one configurations. The selected brackets and support system determine how the screen fits the venue.
For an integrator, the useful starting point is a clear plan: finished screen dimensions, wall or ceiling conditions, access, electrical supply and the service method.
Installation concept from the source brochure; confirm project-specific mounting and load requirements.
Designed for commercial interiors
Application concept from the supplied brochure.
Retail & showrooms
Brand storytelling, product demonstrations and promotional content on a screen sized for the available wall.
Hotels, restaurants & bars
Lobby messaging, event information, dining promotions and entertainment displays selected for the room.
Corporate & public spaces
Meeting rooms, reception areas, training spaces and presentation walls with front-service access.
Explore how to plan a slim indoor LED video wall for U.S. commercial spaces, or ask about U.S. availability and after-sales support from Las Vegas.
SF Series specifications
| Specification | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|---|---|---|
| Pixel pitch | 1.25 mm | 1.56 mm | 1.95 mm | 2.5 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| LED type | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel density (pixels/m²) | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Module resolution | 200 × 200 | 160 × 160 | 128 × 128 | 100 × 100 | 96 × 96 | 84 × 84 | 64 × 64 |
| 500 × 250 mm cabinet resolution | 400 × 200 | 320 × 160 | 256 × 128 | 200 × 100 | 192 × 96 | 168 × 84 | 128 × 64 |
| Brightness (nits) | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Scan method | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Parameter | Specification |
|---|---|
| Application / protection | Indoor / IP31 |
| Cabinet depth | 33 mm (approximately 1.30 in), before mounting system and clearances |
| Module size | 250 × 250 mm |
| Cabinet sizes (W × H) | 500 × 250 / 750 × 250 / 1000 × 250 / 500 × 500 / 750 × 500 / 1000 × 500 mm |
| Cabinet material | Die-cast aluminum |
| Maintenance | Front access |
| Refresh rate | 3,840 Hz |
| Grayscale | 14 / 16 bit options |
| Contrast ratio | 10,000:1 (listed in brochure feature section) |
| Viewing angle (H / V) | 160° / 160° |
| Color temperature | 5,000–12,000 K, adjustable |
| Frame frequency | 50 / 60 Hz |
| Maximum power consumption | 350 W/m² |
| Average power consumption | 100–200 W/m² |
Parameters follow the supplied specification. Pitches are shown using its nominal labels; cabinet resolution varies with the selected size and pitch. The 500 × 250 mm row refers only to that cabinet format. Confirm the final configuration, cabinet weight and electrical requirements with VTLED.
SF Series: frequently asked questions
How thin is the SF cabinet?
The cabinet depth is 33 mm, approximately 1.30 inches. The finished installation will also include its mounting hardware, cable routing and the clearances required for the project; 33 mm is not a claim for the total installed depth.
Can the display be maintained from the front?
Yes. The specification lists front access. Front maintenance is useful for wall-mounted commercial displays where a dedicated rear service aisle would be difficult to accommodate. Use the approved service procedure and plan the required ventilation and access.
What cabinet sizes are available?
Six widths and heights are listed: 500 × 250, 750 × 250, 1000 × 250, 500 × 500, 750 × 500 and 1000 × 500 mm. All use 250 × 250 mm modules. Confirm the combination and orientation for the selected screen.
How much does an SF cabinet weigh?
The supplied specification describes a lightweight design but does not give a verified weight for each cabinet size. Ask VTLED for the weight of your selected cabinet and the complete assembly load before specifying mounting hardware.
Which pixel pitches can I choose?
The brochure lists P1.25, P1.56, P1.95, P2.5, P2.604, P2.976 and P3.91. The appropriate pitch depends on viewing distance, content detail and total screen resolution. Share your nearest viewing position and intended content for a recommendation.
Which installation methods does SF support?
The brochure shows wall mounting, hanging, upright/support-frame and all-in-one arrangements. Brackets, support structures, power, ventilation and front-service access must be planned for the selected configuration. The panel is not a structure-free display.
Can SF be installed outdoors?
SF is an indoor fixed-display system with an IP31 specification. For exposed exterior signage, review the outdoor-rated OZ or OS series and ask VTLED to confirm a suitable configuration.
Do you offer support for U.S. projects?
VTLED provides local after-sales support from Las Vegas and can discuss U.S. project planning. Confirm the selected SF model, current stock, delivery date, spare parts and shipping details for your ZIP code when requesting a quote.
Plan an SF display for your space
Send the target screen size, nearest viewing distance, venue type, mounting plan, content needs and delivery ZIP code. VTLED can help review the panel layout, model selection, current availability and support requirements.
