STAGE & EVENT RENTAL LED DISPLAY
RS Series
Single person. Faster panel setup.
Designed around integrated upper handles and locks, RS Series helps one installer lift, align, connect and remove individual LED cabinets. A compact 500 × 500 mm format and a dual-use support beam give U.S. rental companies, event crews and venues more options for repeated setup and teardown.
Single-person cabinet handling
Two upper assemblies combine a hand grip and a lock.
≥7,680 Hz refresh
16-bit grayscale for detailed event visuals.
Hanging or ground support
A dual-use beam supports two installation arrangements.
Handle and lock at the same point
When a cabinet is lifted into position, the next task is alignment and connection. RS places the upper grips and locking assemblies together, so handling and locking happen at the same locations. Positioning pins help guide cabinet alignment.
The design supports single-person cabinet installation and dismantling. Use the operating sequence, lifting equipment and support arrangement specified in the product manual.
01 / Lift & position
Use the two integrated grips to handle the cabinet and bring it into position.
02 / Align & connect
Positioning pins guide alignment while upper locks connect adjacent rows.
03 / Release & remove
The same grip-and-lock locations support a controlled teardown.
One beam. Two ways to deploy.
The RS support beam combines a hanging bar and a ground beam. In hanging mode, lifting eyes provide connection points for the suspension arrangement, and cabinet locks connect the beam to the display.
In ground-support mode, threaded leveling feet allow base-height adjustment and leveling. Confirm the required hardware and load limits for the chosen layout.

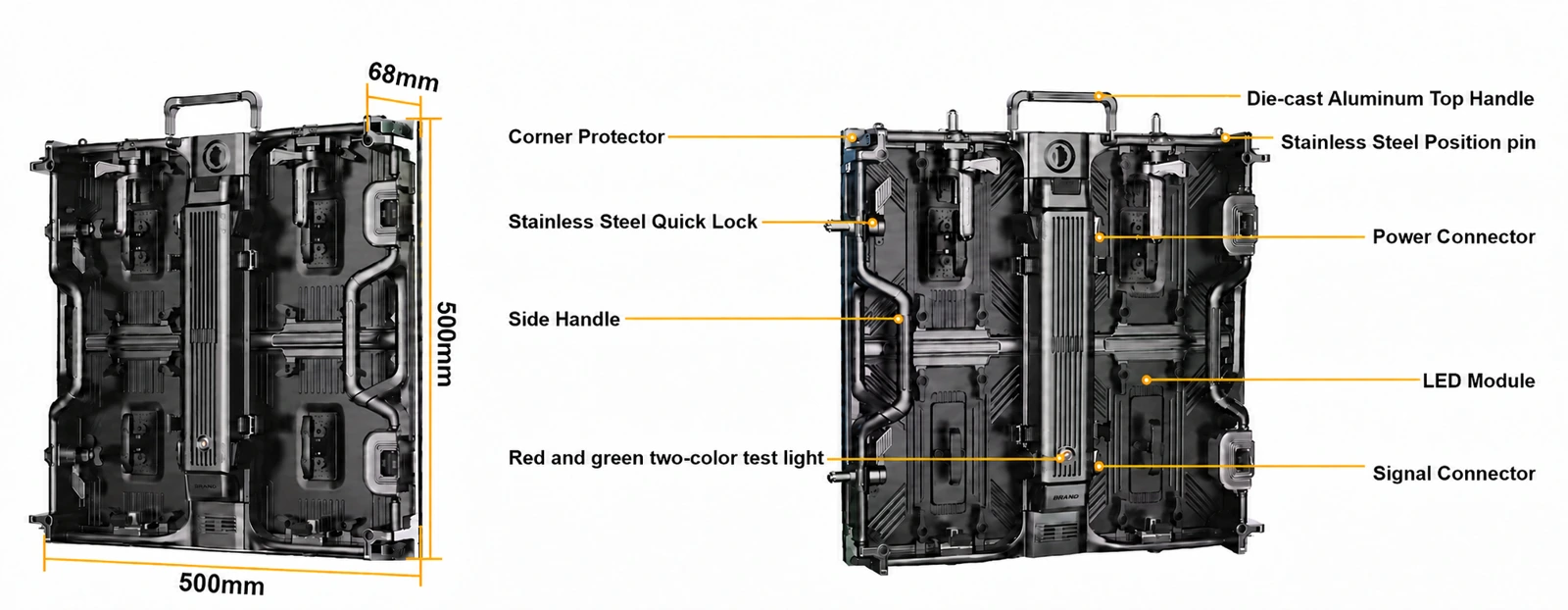

A compact cabinet for repeat event work
All five RS models share a 500 × 500 × 68 mm cabinet—approximately 19.7 × 19.7 × 2.68 inches. Indoor cabinets weigh 16.5 lb; outdoor cabinets weigh 17.6 lb. Front and rear service access lets the maintenance plan follow the access available at the venue.
A refresh rate of at least 7,680 Hz and 16-bit grayscale support dynamic content and tonal detail. Choose the panel model, processor and content workflow together for the event.
Indoor RS19 / RS26
1.95 mm or 2.6 mm pixel pitch; ≥1,000 cd/m² brightness; IP31.
Outdoor RS29 / RS39 / RS48
2.9 mm, 3.9 mm or 4.8 mm pixel pitch; ≥5,000 cd/m² brightness; IP65.
RS Series specifications
| Specification | RS19 | RS26 | RS29 | RS39 | RS48 |
|---|---|---|---|---|---|
| Pixel pitch | 1.95 mm | 2.6 mm | 2.9 mm | 3.9 mm | 4.8 mm |
| Application | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
| Panel resolution (W × H) | 256 × 256 | 192 × 192 | 168 × 168 | 128 × 128 | 104 × 104 |
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (cd/m²) | ≥1,000 | ≥1,000 | ≥5,000 | ≥5,000 | ≥5,000 |
| Minimum viewing distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m | ≥4.8 m |
| Grayscale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh rate | ≥7,680 Hz | ≥7,680 Hz | ≥7,680 Hz | ≥7,680 Hz | ≥7,680 Hz |
| Input voltage / frequency | 110–220 V / 50–60 Hz | 110–220 V / 50–60 Hz | 110–220 V / 50–60 Hz | 110–220 V / 50–60 Hz | 110–220 V / 50–60 Hz |
| Power consumption (W/m²) | 360–700 | 350–680 | 320–640 | 300–620 | 330–650 |
| Service access | Front / rear | Front / rear | Front / rear | Front / rear | Front / rear |
| IP rating | IP31 | IP31 | IP65 | IP65 | IP65 |
| Operating temperature | −30°C to +50°C (−22°F to +122°F) | −30°C to +50°C (−22°F to +122°F) | −30°C to +50°C (−22°F to +122°F) | −30°C to +50°C (−22°F to +122°F) | −30°C to +50°C (−22°F to +122°F) |
| Operating humidity | 10%–80% | 10%–80% | 10%–80% | 10%–80% | 10%–80% |
| Cabinet size (W × H × D) | 500 × 500 × 68 mm | 500 × 500 × 68 mm | 500 × 500 × 68 mm | 500 × 500 × 68 mm | 500 × 500 × 68 mm |
| Cabinet weight | 7.5 kg / 16.5 lb | 7.5 kg / 16.5 lb | 8 kg / 17.6 lb | 8 kg / 17.6 lb | 8 kg / 17.6 lb |
| Rated lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Module size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Modules per cabinet | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
Values follow the VTLED RS Series brochure. Cabinet dimensions are metric; imperial values are approximate conversions. The power-consumption ranges are reproduced as listed in the brochure. Rated lifespan is a specification, not a warranty period. Confirm the final model and system configuration with VTLED.
Built around the demands of U.S. event work
RS is a practical option to discuss for corporate events, trade shows, weddings, concerts, festivals, brand activations and community events. The single-person cabinet design is especially relevant where crews repeat panel handling throughout a busy schedule.
For U.S. projects, VTLED can help plan the screen and discuss current U.S. availability and after-sales support from Las Vegas. Confirm RS model stock and delivery timing for your event before ordering.
Read our guide to RS single-person panel setup for U.S. event crews, or review the LED display quality-control process.
RS Series: frequently asked questions
Can one person install the RS Series?
The RS brochure describes single-person cabinet installation and dismantling using two integrated upper grips and locks. This refers to handling and connecting individual cabinets. The complete LED wall still requires an appropriate support or rigging system, lifting equipment and the crew specified for the installation.
What are the cabinet dimensions and weight?
Every RS model uses a 500 × 500 × 68 mm cabinet, approximately 19.7 × 19.7 × 2.68 inches. RS19 and RS26 weigh 7.5 kg (16.5 lb); RS29, RS39 and RS48 weigh 8 kg (17.6 lb).
Which RS models are suitable for outdoor events?
RS29, RS39 and RS48 are outdoor models with a listed brightness of at least 5,000 cd/m² and an IP65 rating. RS19 and RS26 are indoor models rated IP31, with at least 1,000 cd/m² brightness. Select the model for the actual venue and exposure conditions.
How does the dual-use support beam work?
The same beam can serve as a hanging bar or a ground-support base. Lifting eyes provide suspension connection points; threaded leveling feet allow adjustment in ground-support mode. Confirm the matching hardware, load capacity and support arrangement for the intended configuration.
Does RS offer front and rear maintenance access?
Yes. The brochure lists front and rear service access for all five RS models. Allow appropriate access for the selected installation and follow the service instructions.
How do I choose a pixel pitch for my U.S. project?
Start with your nearest audience distance and the detail in your content. RS offers pitches from 1.95 mm to 4.8 mm. Send the screen dimensions, venue, audience distance and content type to VTLED for a model and layout recommendation.
Is RS Series in stock in the United States?
Contact VTLED to confirm current RS stock, spare parts and delivery timing for your ZIP code. VTLED provides local after-sales support from Las Vegas; availability of a specific RS model must be confirmed for each order.
What information should I include in a quote request?
Include your screen width and height, nearest viewing distance, indoor or outdoor use, hanging or ground-support arrangement, event date and delivery ZIP code. Add your processor details and any existing support hardware so compatibility can be checked.
Plan your next rental LED wall
Send the screen dimensions, viewing distance, venue, installation method, event date and delivery ZIP code. We will help you review a suitable RS model, layout and accessories.
Explore More Rental & Stage Displays
Compare rental and stage series, or explore indoor display alternatives for your venue.

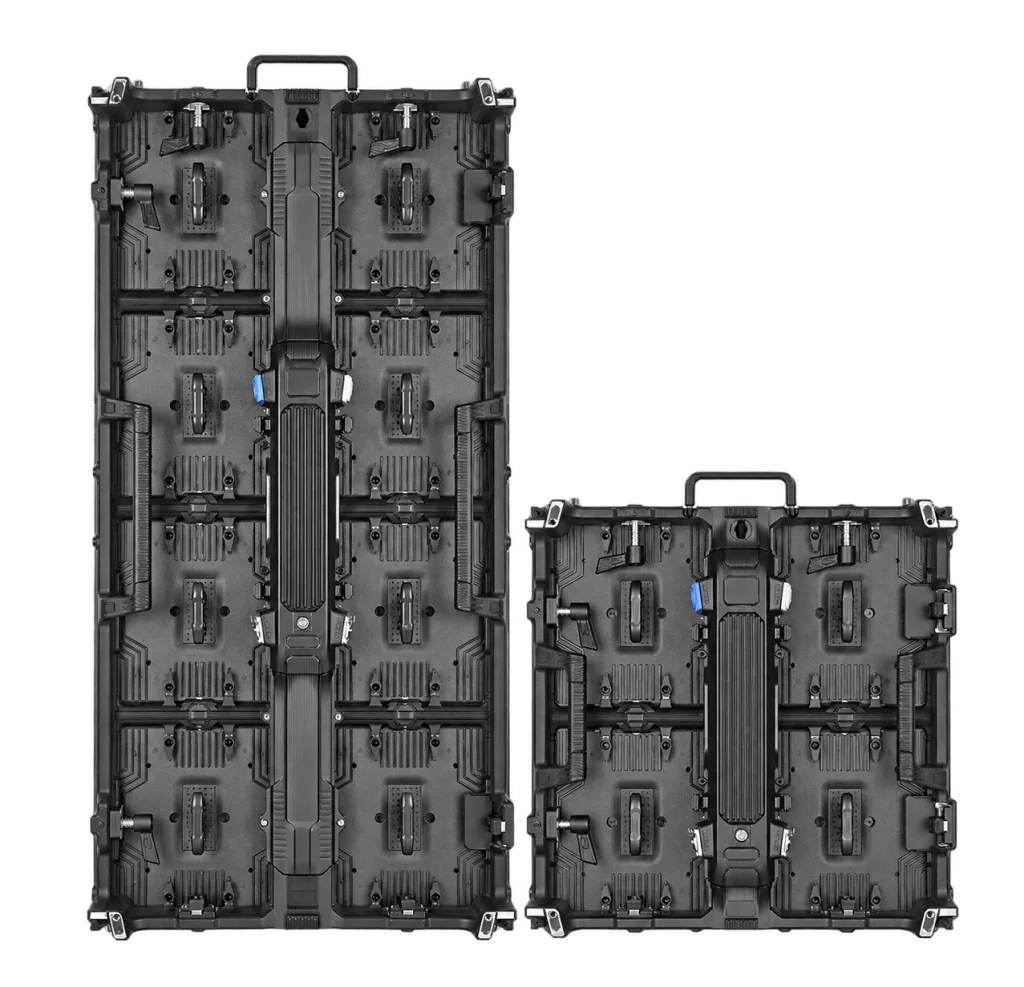

Indoor rental cabinets with front and rear service access.
