Indoor Rental LED Display
RZ Series
Quick setup. Vivid images. More freedom for your next indoor event.
Built for rental and staging crews, RZ Series combines 500 × 500 mm and 500 × 1000 mm cabinets with quick locks, front and rear service access, and a removable power and signal box. Choose the pixel pitch and panel format that fit your venue, viewing distance, and production.

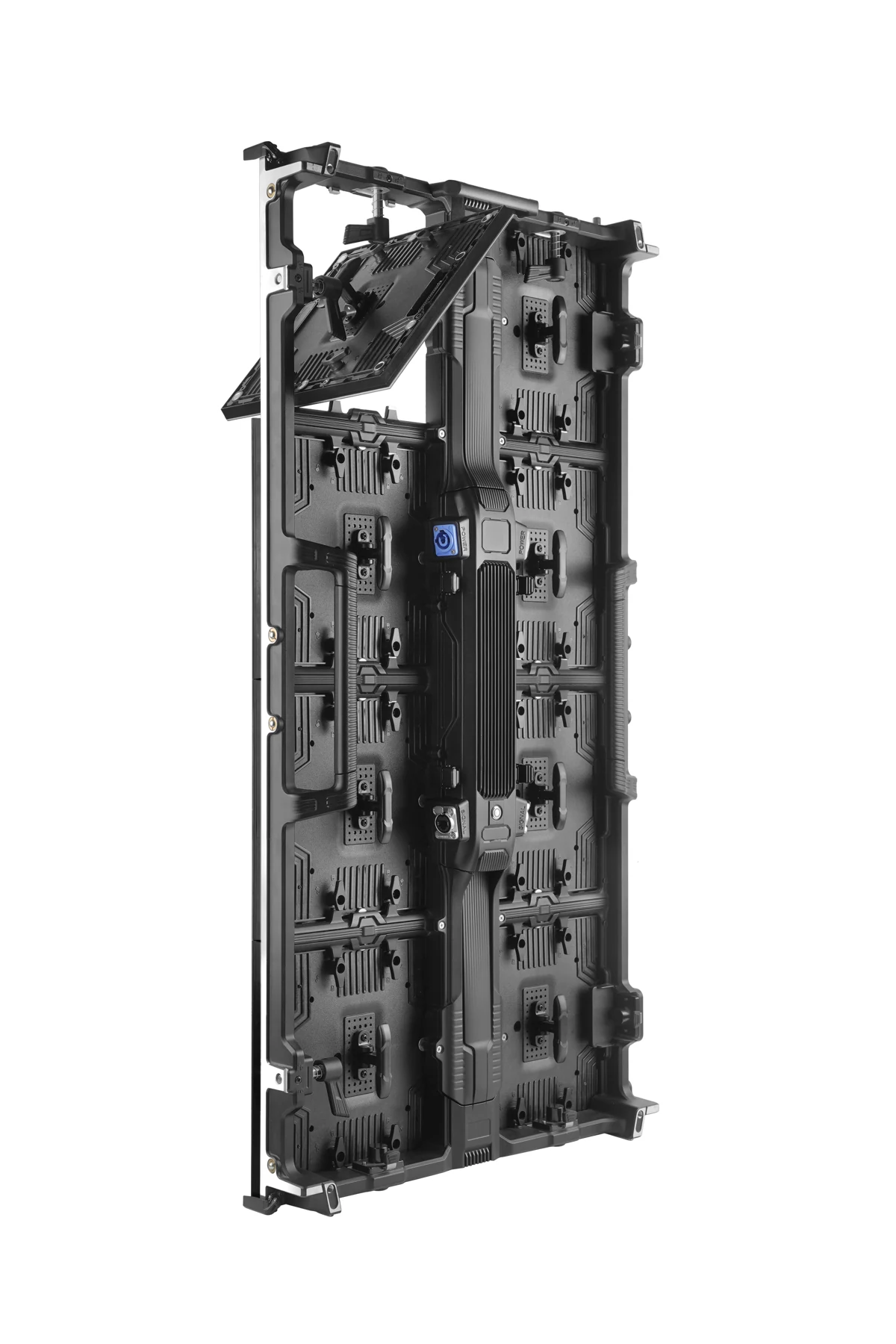

FRONT & REAR SERVICE
Busy event schedules leave little room for difficult maintenance. RZ panels can be serviced from the front or rear, giving crews access that suits the installation.

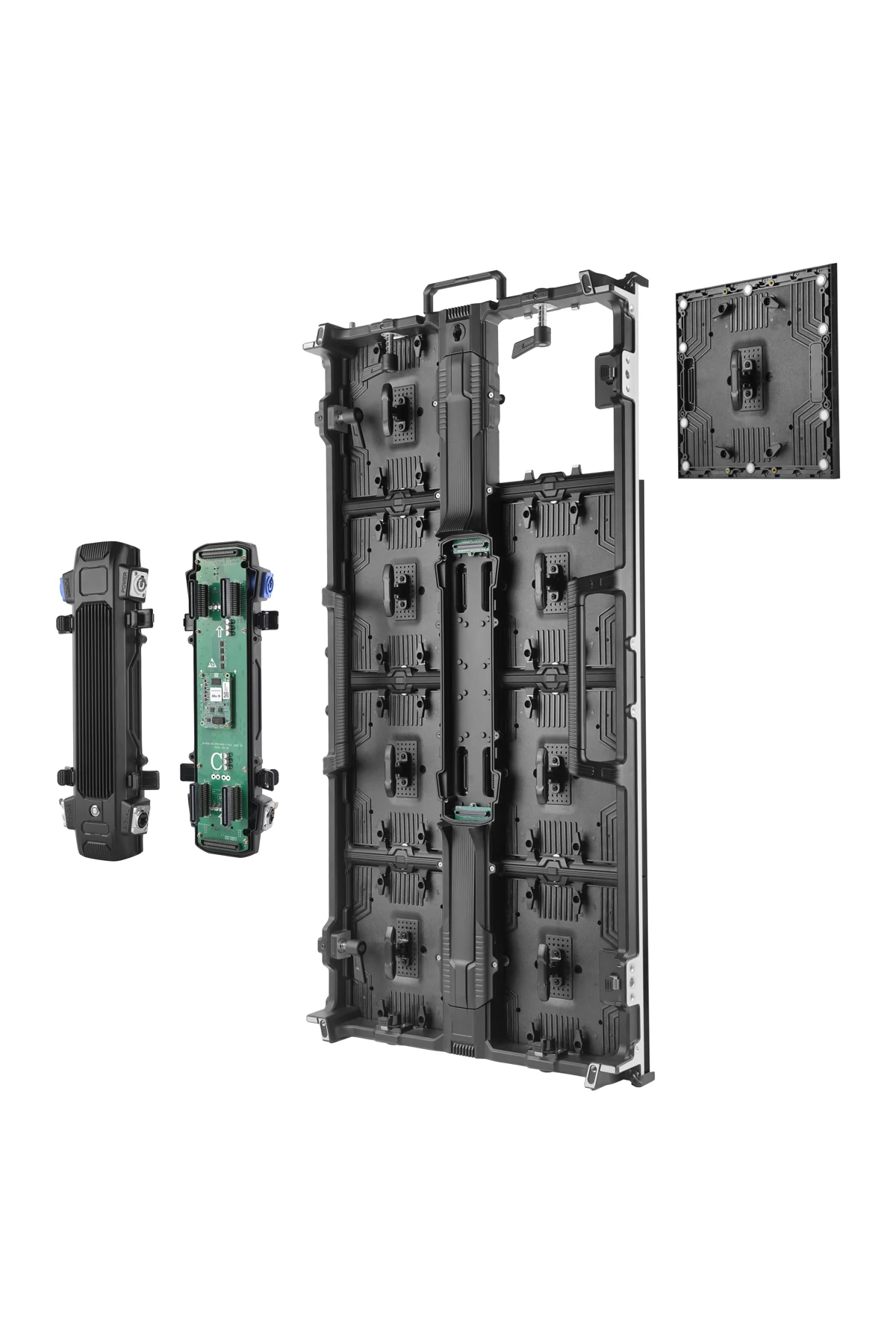

The removable power and signal box keeps the service path straightforward. Modular LED panels, a die-cast aluminum frame and accessible components support repeated setup and teardown.
Learn about our LED display inspection and quality-control process when reviewing a system for repeated event use.
QUICK LOCKS. EASIER HANDLING.
Quick locks connect the cabinets without tools, while built-in handles help crews move and position each panel. The 500 × 500 mm cabinet weighs 8 kg (about 17.6 lb); the 500 × 1000 mm cabinet weighs 14 kg (about 30.9 lb).

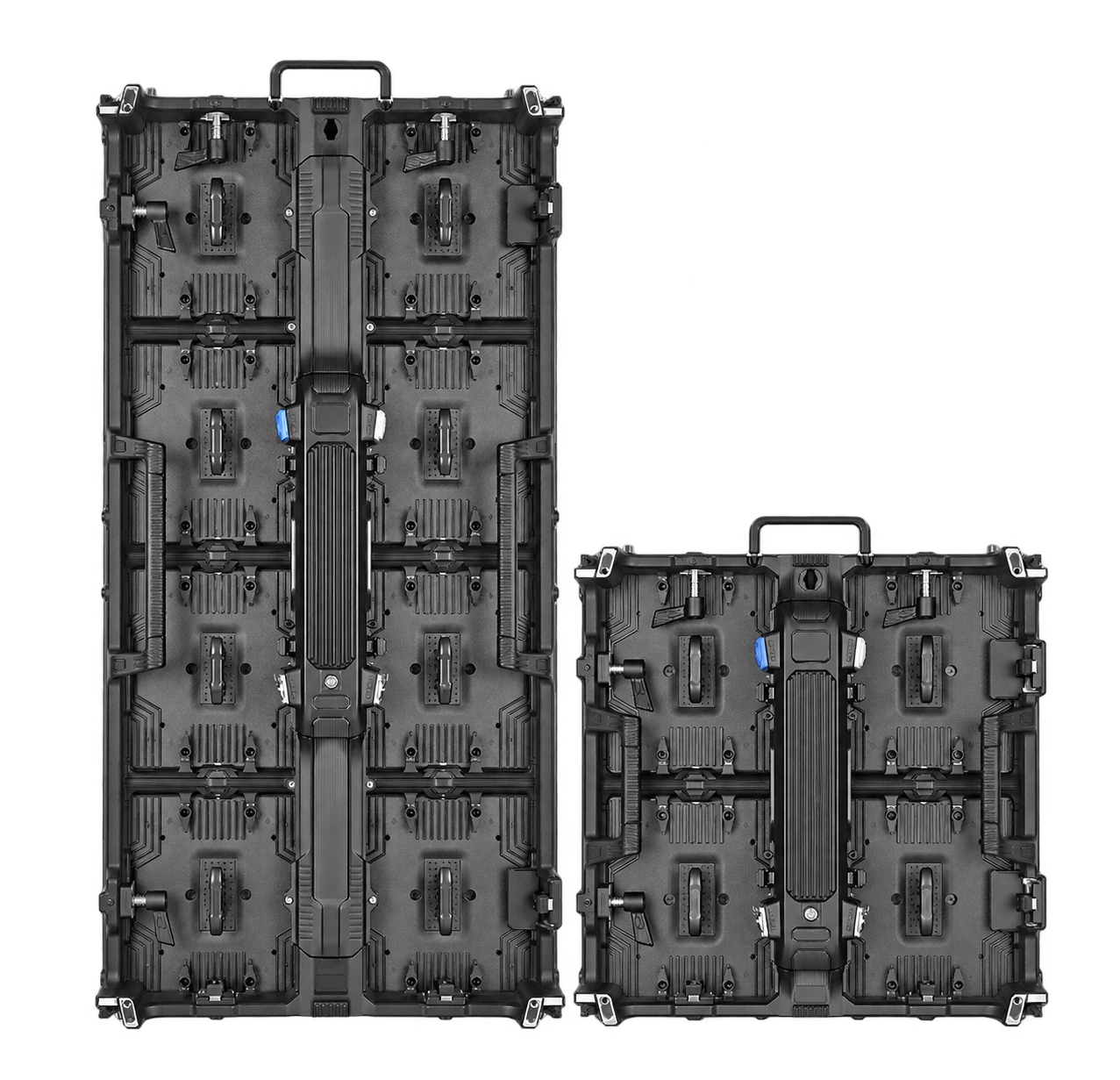

Use square panels where you need finer height increments and taller panels where they suit the screen layout. Both cabinet formats are 500 mm wide and 80 mm deep.
VIVID IMAGES. CREATIVE LAYOUTS.
Choose RZ19, RZ26, RZ29 or RZ39 for the viewing distance and content in your venue. A 7,680 Hz refresh rate, 16-bit grayscale and 4,000:1 contrast ratio support detailed indoor visuals, from presentation slides to concert content.

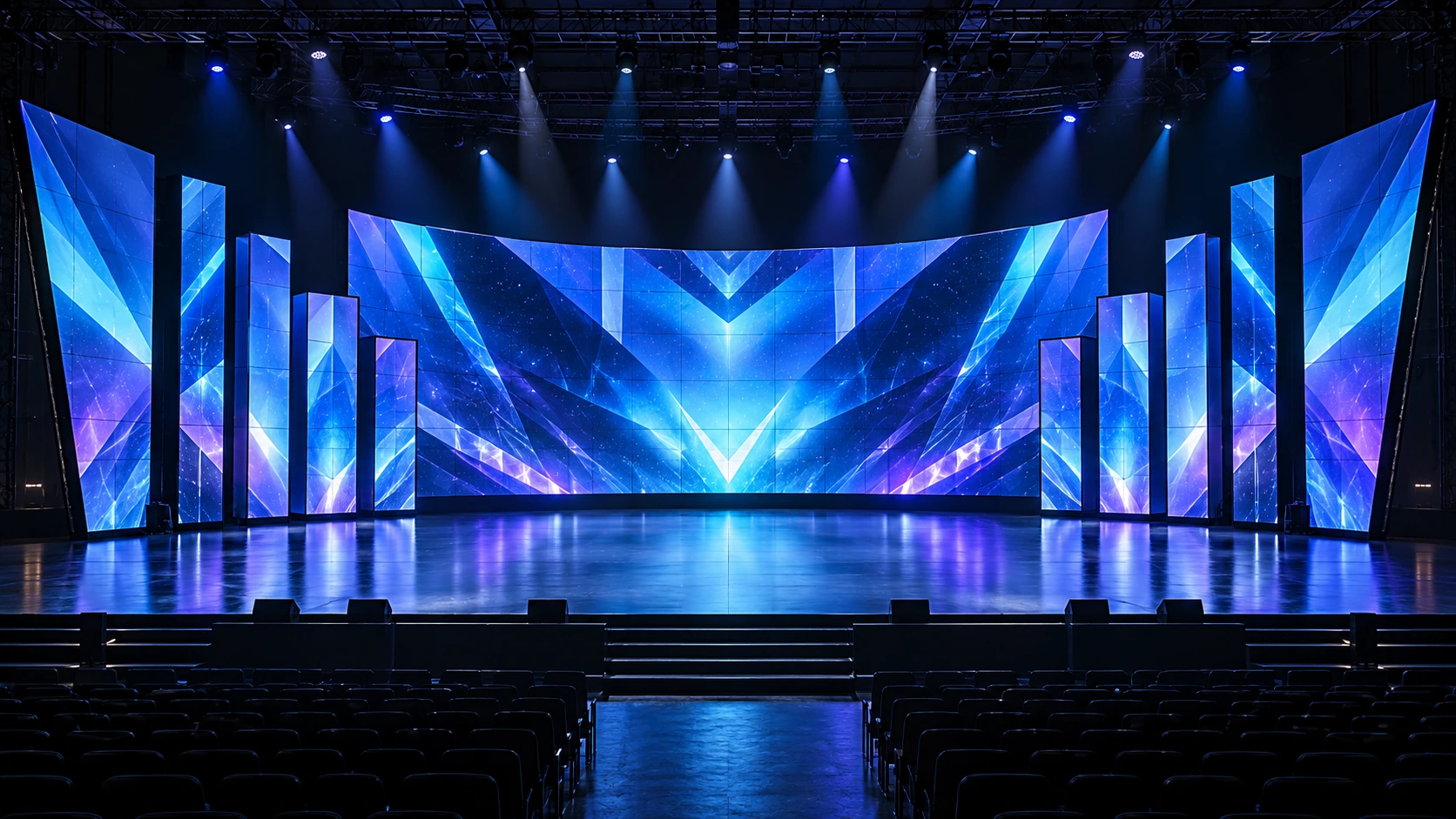

The RZ range includes standard, curved, flexible and 90° panel options for creative stage layouts. Ask VTLED to confirm the compatible panels and hardware for your design.

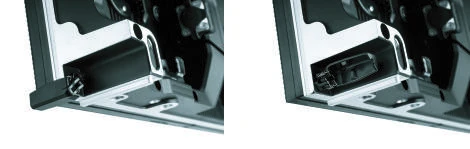

Built-In Corner Protection
Corner protectors help reduce damage while panels are packed, handled and set up. The brochure also shows floor and tabletop positioning for product demonstrations. Confirm a stable display arrangement and the appropriate support for each use.
RZ Series Specifications
| Specification | RZ19 | RZ26 | RZ29 | RZ39 |
|---|---|---|---|---|
| Pixel pitch | 1.9 mm | 2.6 mm | 2.97 mm | 3.91 mm |
| LED package | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Pixel density (pixels/m²) | 262,144 | 147,456 | 112,896 | 65,536 |
| Module size (W × H) | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Cabinet size (W × H × D) | 500 × 500 × 80 mm 500 × 1000 × 80 mm | 500 × 500 × 80 mm 500 × 1000 × 80 mm | 500 × 500 × 80 mm 500 × 1000 × 80 mm | 500 × 500 × 80 mm 500 × 1000 × 80 mm |
| Modules per cabinet (W × H) | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 |
| Module resolution (W × H) | 128 × 128 | 96 × 96 | 84 × 84 | 64 × 64 |
| Cabinet resolution (W × H) | 256 × 256 / 256 × 512 | 192 × 192 / 192 × 384 | 168 × 168 / 168 × 336 | 128 × 128 / 128 × 256 |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Cabinet weight | 8 / 14 kg (17.6 / 30.9 lb) | 8 / 14 kg (17.6 / 30.9 lb) | 8 / 14 kg (17.6 / 30.9 lb) | 8 / 14 kg (17.6 / 30.9 lb) |
| Grayscale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average power draw (W/cabinet) | 50 / 100 | 50 / 100 | 28 / 56 | 28 / 56 |
| Maximum power draw (W/cabinet) | 145 / 290 | 145 / 290 | 85 / 165 | 85 / 165 |
| Operating temperature / humidity | −10°C to +60°C / 10–60% | −10°C to +60°C / 10–60% | −10°C to +60°C / 10–60% | −10°C to +60°C / 10–60% |
| Storage temperature / humidity | −30°C to +60°C / 10–60% | −30°C to +60°C / 10–60% | −30°C to +60°C / 10–60% | −30°C to +60°C / 10–60% |
| Refresh rate | 7,680 Hz | 7,680 Hz | 7,680 Hz | 7,680 Hz |
| Brightness | ≥600 nits | ≥800 nits | ≥1,000 nits | ≥1,000 nits |
| Viewing angle (horizontal / vertical) | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| Rated lifespan | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Maximum stacked cabinets* | 20 / 10 | 20 / 10 | 20 / 10 | 20 / 10 |
| Maximum suspended cabinets* | 20 / 10 | 20 / 10 | 20 / 10 | 20 / 10 |
| Service access | Front / rear | Front / rear | Front / rear | Front / rear |
| IP rating (front / rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
| Scan method | 1/26 scan | 1/24 scan | 1/16 scan | 1/16 scan |
Where two values are listed, the first applies to the 500 × 500 mm cabinet and the second to the 500 × 1000 mm cabinet. *Stacking and suspension limits depend on the installation system. Confirm the rigging plan and compatible hardware before installation. Rated lifespan is a specification, not a warranty period.
Plan your next rental LED wall with RZ Series
Built for Indoor Stages and Venues
Concerts · Churches · Trade Shows · DJ Events · Hotels · Retail

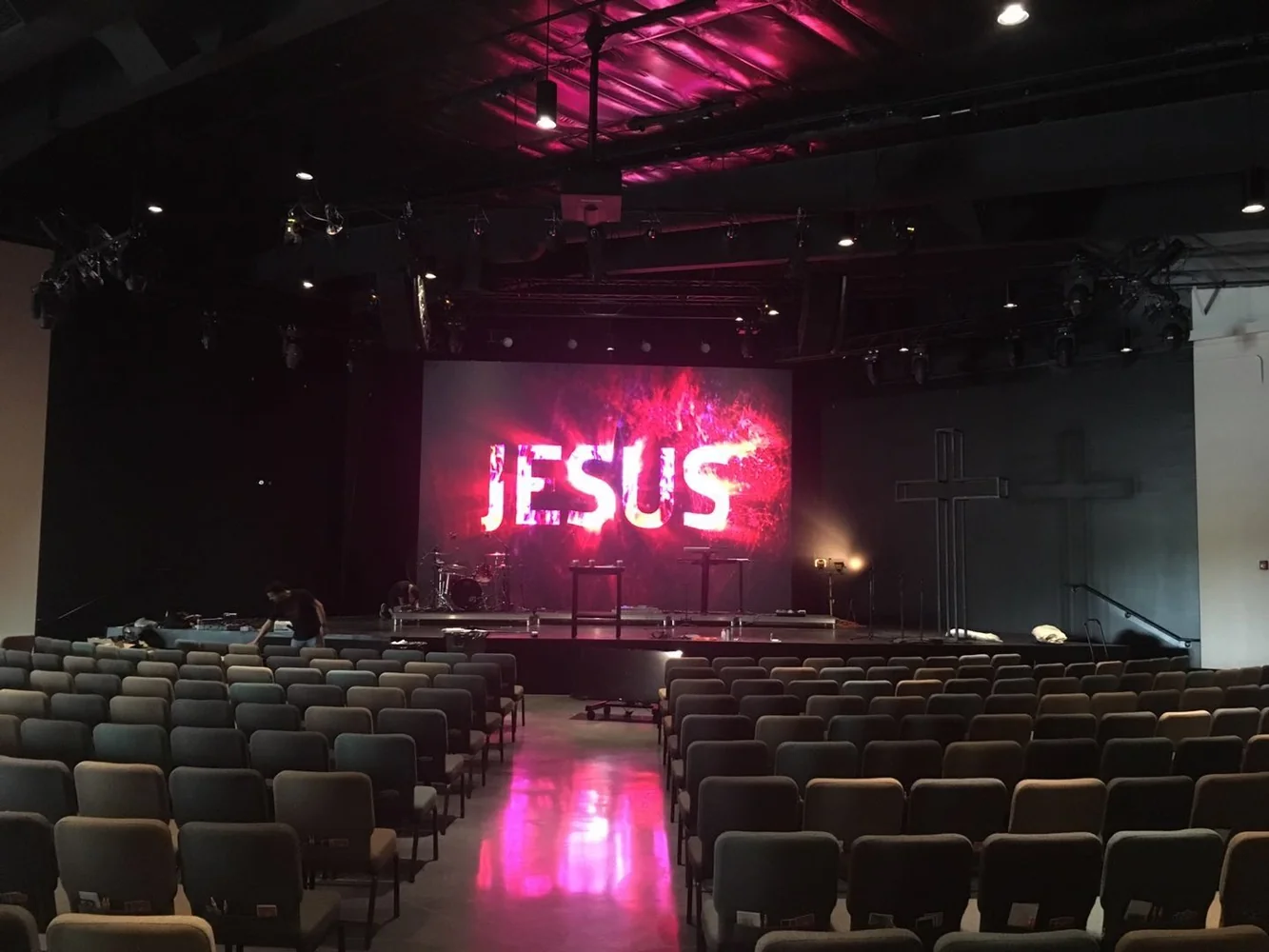

Application image from the RZ brochure: Oklahoma City church LED wall.
RZ suits indoor concert tours, stage productions, DJ events, auto shows, retail stores, shopping malls, opera houses, churches, wedding venues, themed attractions and resorts. The panel layout can be planned around the venue and audience, with square or tall cabinet formats to suit the design.
Planning a house of worship? See our Oklahoma City church LED wall case study using RX panels for another indoor stage application.
For U.S. rental companies and venues: Contact Visualtech LED for RZ Series screen planning and local after-sales support from Las Vegas. Ask our team to confirm current RZ stock, delivery timing, spare parts and the configuration for your project. Request a quote.
RZ Series: Frequently Asked Questions
Is RZ Series suitable for outdoor events?
RZ is an indoor rental LED display. The brochure specifies IP40 on the front and IP21 on the rear. For an outdoor event, ask VTLED for an outdoor-rated rental series rather than using RZ in exposed conditions.
Which RZ pixel pitch should I choose?
RZ19, RZ26, RZ29 and RZ39 offer 1.9 mm, 2.6 mm, 2.97 mm and 3.91 mm pixel pitches. Finer pitches provide more pixels at a given screen size and can suit closer viewing or detailed content. Share your nearest viewing distance, screen dimensions and content type so we can recommend a suitable model.
What cabinet sizes are available?
RZ cabinets are available in 500 × 500 × 80 mm and 500 × 1000 × 80 mm formats. Both are 500 mm wide. The square cabinet weighs 8 kg and the tall cabinet weighs 14 kg. These are metric cabinet dimensions, rather than exact 2 ft × 1 ft units.
Can RZ be serviced from both sides?
Yes. RZ supports front and rear service access. Its modular LED panels and removable power and signal box allow maintenance to suit the access available at your venue.
Can I build a curved or 90-degree LED wall?
The RZ range includes standard, curved, flexible and 90° panel options. The required panels, connections and supporting hardware depend on the layout. Send a drawing to VTLED so we can confirm compatibility and a suitable configuration.
Can RZ be used for indoor churches, concerts and trade shows?
Yes. Indoor stages, houses of worship, concert productions, DJ events, auto shows, reception venues and retail displays are applications listed in the RZ brochure. Screen size, brightness and pixel pitch should be selected for each venue and audience.
Do you offer U.S. support and local inventory?
Visualtech LED provides local after-sales support from Las Vegas and can advise on U.S. availability. RZ stock, spare parts and delivery timing depend on the model and order, so confirm current availability with our team when requesting a quote.
What information do you need for an RZ rental LED wall quote?
Send your target screen width and height, nearest viewing distance, venue, intended content, installation method, event schedule and delivery ZIP code. If you already have a processor or rigging system, include its details. We can then discuss a panel layout, model selection and compatible accessories.
