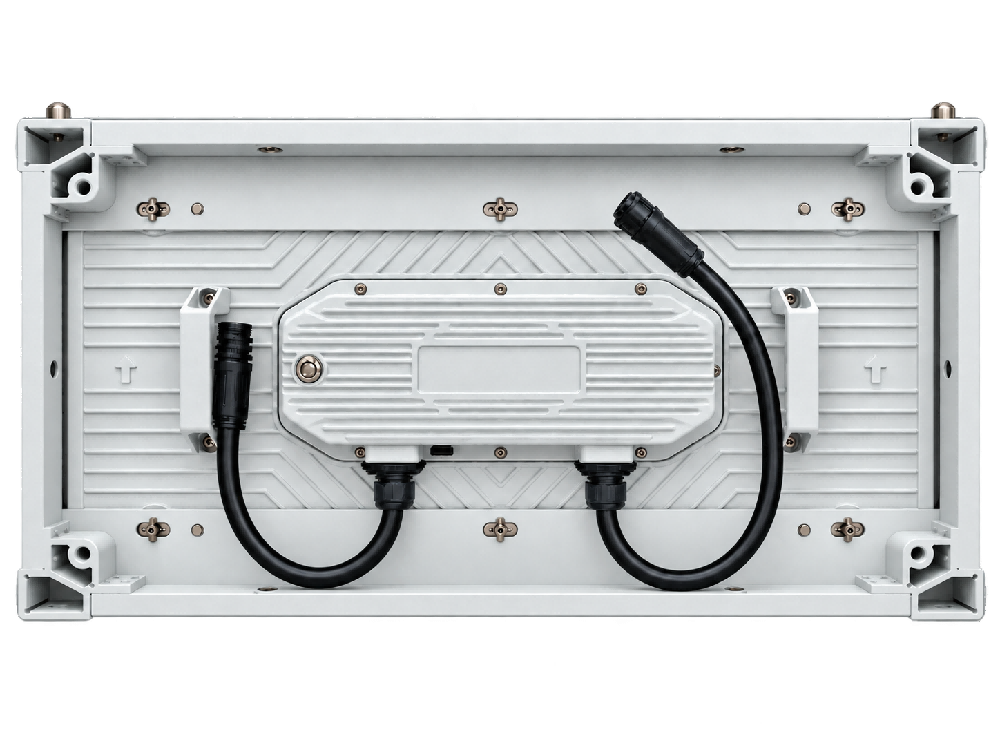

OZ smart brick SERIES 2 FT × 1 FT OUTDOOR LED DISPLAY
OZ Series
IP67 full sealed aluminum body case for high protection rank and heat dissipation
Built around a 12 × 24 inch panel, OZ Series helps turn standard U.S. sign dimensions into custom outdoor LED displays. Combine modules for roadside signs, school communications, shopping center entrances and storefront advertising.

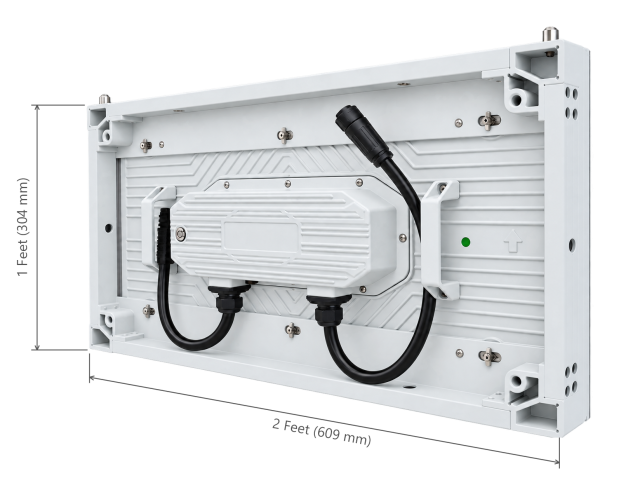

OZ Smart Brick Series gives sign builders a flexible starting point: each outdoor LED panel measures 2 ft × 1 ft (12 × 24 in), so panels can be combined to fit many familiar U.S. sign sizes.
For bright outdoor locations, the die-cast aluminum cabinet offers up to 10,000 nits and an IP67 sealed, fanless design. Front and rear service access helps installers plan around the available space.
Product Overview

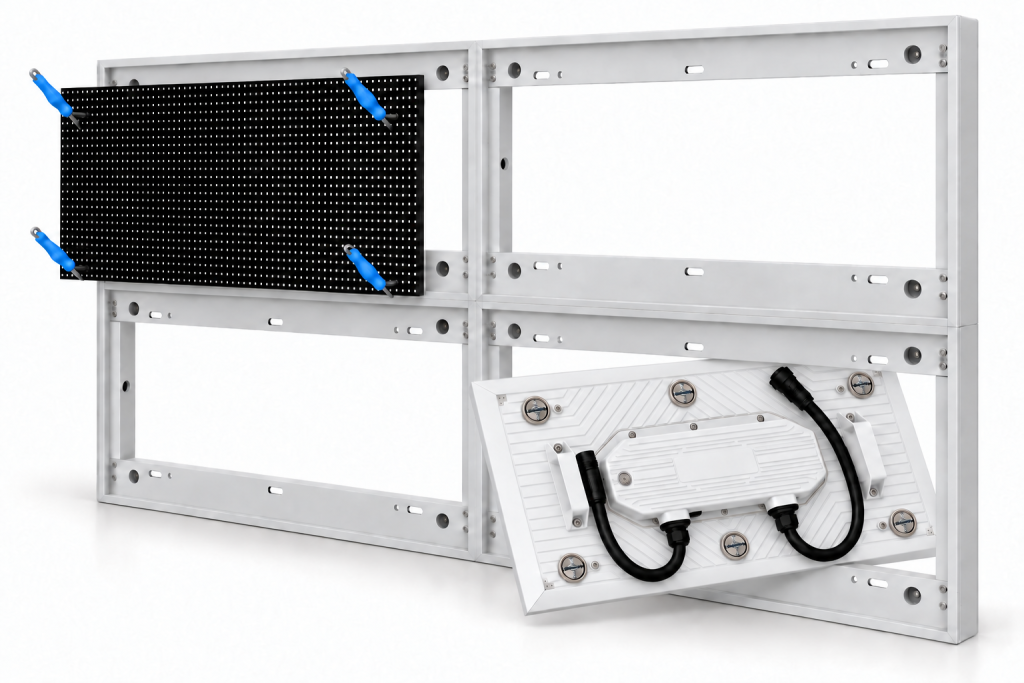

Dual Front and Rear Service Design

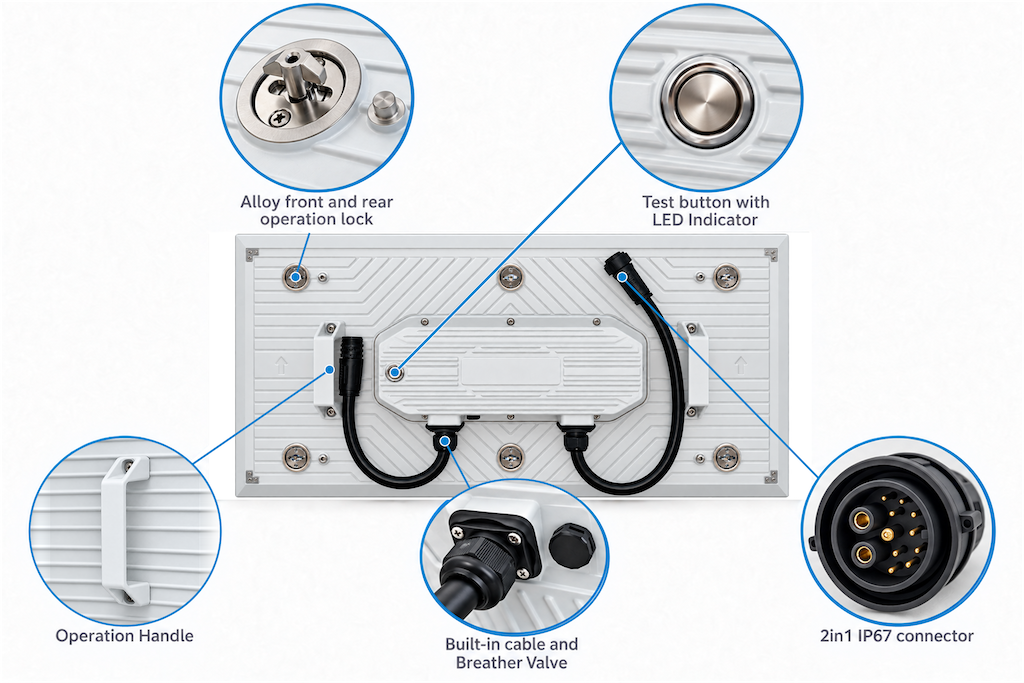

Front and rear maintenance options give installers flexibility when the display sits against a wall, inside an existing sign structure or on an open frame. The receiving card and power components can be planned for accessible service.

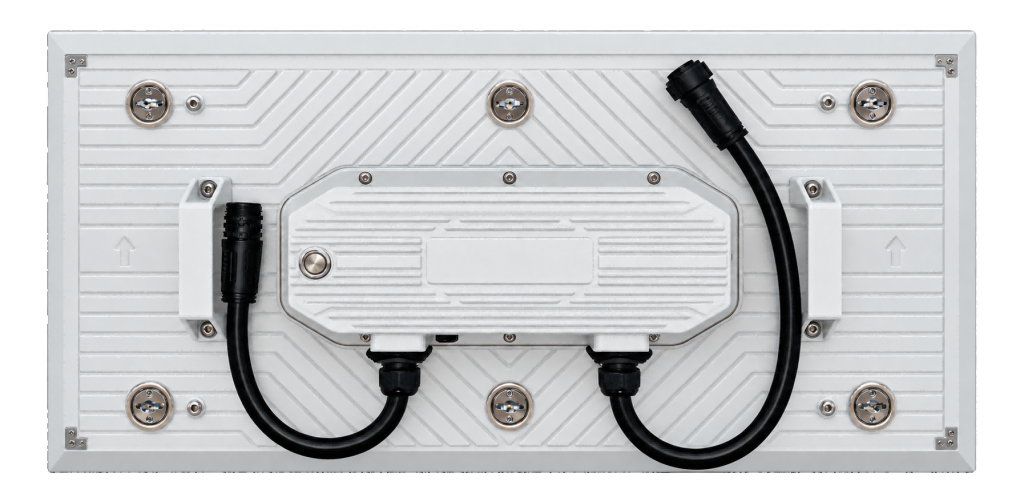

Fanless Aluminum Heat Dissipation
The IP67 sealed die-cast aluminum cabinet releases heat through its metal body without relying on cooling fans. Fewer moving parts help simplify routine upkeep in demanding outdoor locations.
Daylight Visibility and Weather Protection

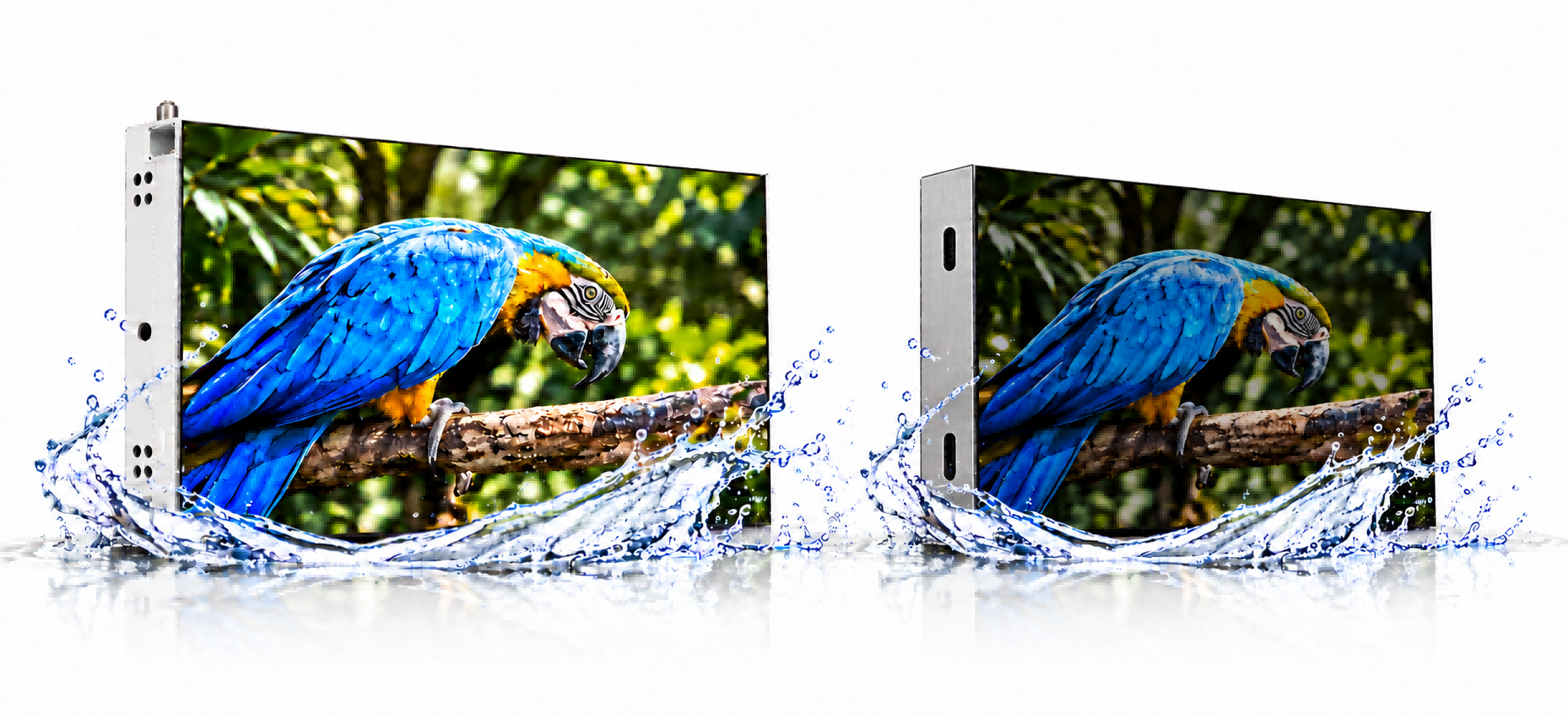

With brightness up to 10,000 nits, OZ is designed for direct-sunlight viewing. Its IP67-rated enclosure is designed to resist dust and water ingress for roadside, campus and commercial signage.

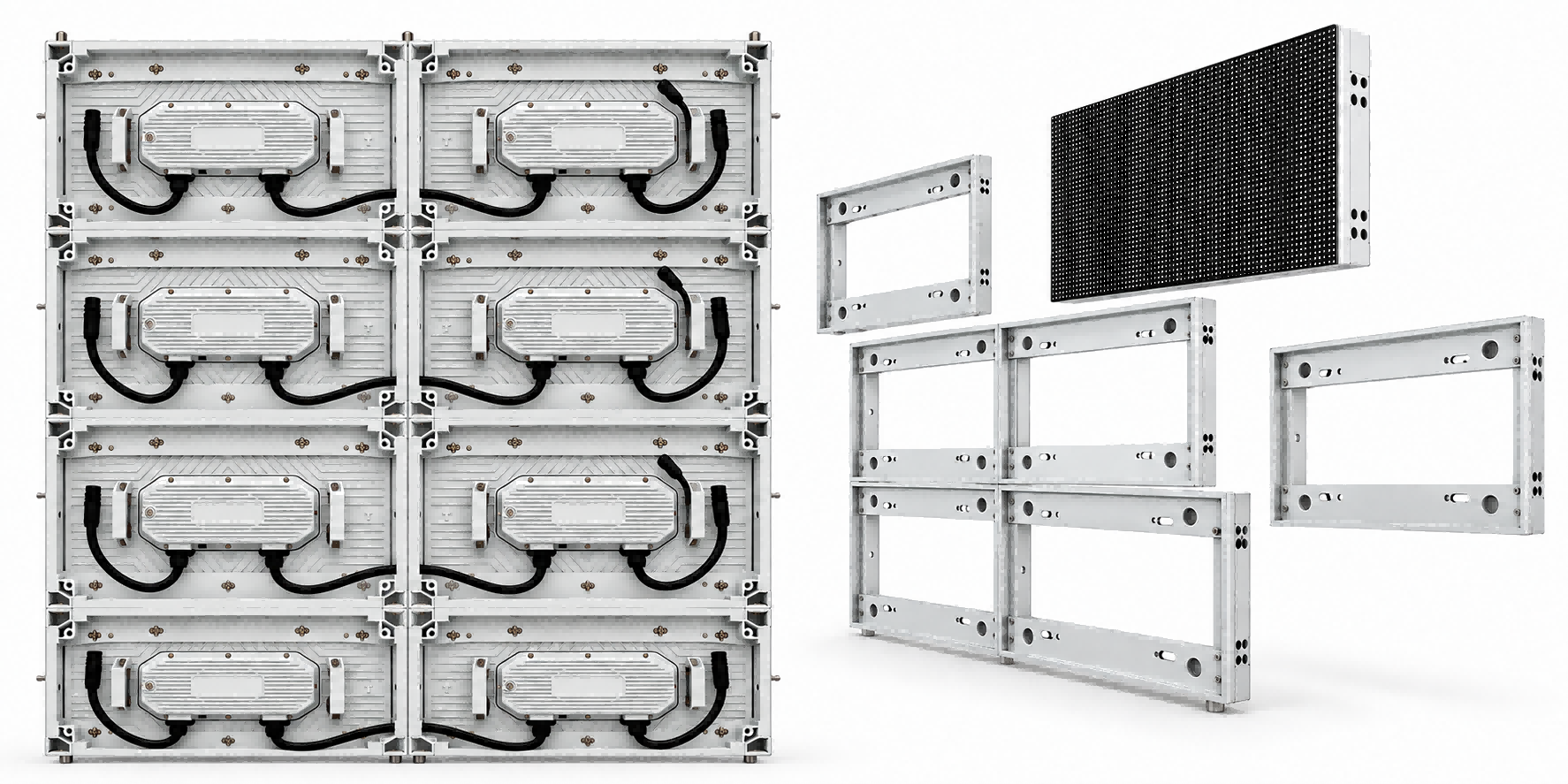

Modular Mounting for Efficient Installation
Panel alignment and modular framing support larger display builds while keeping the 2 ft × 1 ft unit easy to handle. Share your mounting method and site drawings so we can recommend a suitable structure.
Specifications
| Model | OZ42 | OZ63 | OZ95 |
|---|---|---|---|
| Pixel Pitch | 4.2mm | 6.3mm | 9.5mm |
| Application | Outdoor | Outdoor | Outdoor |
| Resolution(W*H) | 144*72 | 96*48 | 64*32 |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Brightness | ≥8000cd/m² | ≥10000cd/m² | ≥10000cd/m² |
| Viewing Distance | ≥4.2m | ≥6.3m | ≥9.5m |
| Gray Level | 16bit | 16bit | 16bit |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Input Power | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz | ≥110-220V 50/60Hz |
| Power consumption | 50w-150w/Panel | 50w-150w/Panel | 50w-150w/Panel |
| Service Type | Front/rear | Front/rear | Front/rear |
| IP Protection | IP67 | IP67 | IP67 |
| Working Temperature | -22°C to +130°F | -22°C to +130°F | -22°C to +130°F |
| Working Humility | 10-80% | 10-80% | 10-80% |
| Dimensions W x H x D | 24*12*2inch | 24*12*2inch | 24*12*2inch |
| Weight | 9lb | 9lb | 9lb |
| Life Span | ≥100000 hours | ≥100000 hours | ≥100000 hours |
Build the outdoor sign your site needs
Application Scenario
The 2 ft × 1 ft format can be combined into displays for many outdoor locations:
- Roadside and highway advertising signs

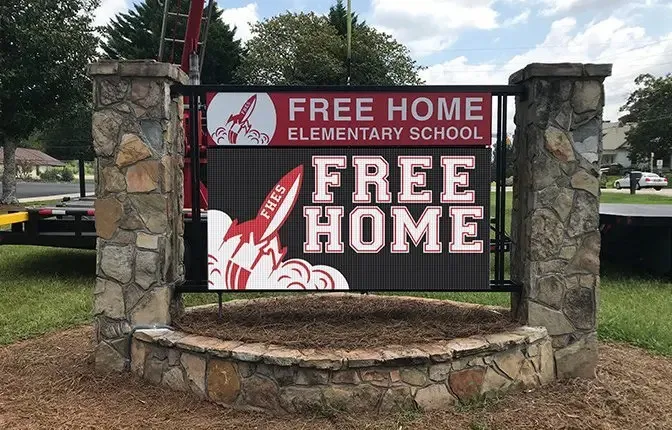

- School message centers and campus entrances
- Shopping centers, retail storefronts and parking entrances
- Conversions of existing back-lit signs
- Pole, wall and roof-mounted digital signage
- Mobile LED trailers and double-sided street displays
Tell us where the screen will be installed and how far away people will view it; we can help select a suitable configuration.
Frequently Asked Questions
Are 2 ft × 1 ft and 1 ft × 2 ft panels different?
They describe the same 24 × 12 in module in different orientations. With the appropriate frame, OZ can be used in landscape or portrait layouts.
Why does common cathode use less power?
It supplies the LED colors at voltages suited to each color, which reduces energy lost as heat. The design can use up to 30% less power than a comparable common anode screen.
What does IP67 mean for an outdoor sign?
IP67 is an ingress-protection rating for dust and water resistance. OZ pairs this rating with a sealed, fanless aluminum cabinet for outdoor use.
Can OZ be used to update an existing illuminated sign?
Often, yes. The 12 × 24 in modules can be arranged to suit many standard sign dimensions. We review the existing structure, mounting space and power supply before recommending a retrofit layout.
How quickly can a display be assembled?
After site preparation, a trained team can assemble a standard 4 × 8 ft display with modular frames in about 30 minutes. Total installation time also depends on mounting, wiring and local site conditions.
Which pixel pitch should I choose?
P6.35 is typically viewed from around 20–100 ft. P3.8 is an option for closer viewing, around 12–50 ft; P9.5 may suit longer distances of about 30–200 ft. We can recommend a pitch for your site.
What installation help is available?
Visualtech LED can provide manuals, video guidance and remote assistance by phone, email or video. Ask about training or project-specific support for larger installations.
Which certifications are available?
The stated OZ configuration includes CE certification, FCC approval, EMC-A compliance and RoHS compliance. Ask for documentation for the exact configuration in your quote.
What is included in the six-year warranty?
Eligible parts include LED lamps and driving ICs, power supplies, receiving cards, and cabinet materials. The written warranty sets out replacement support, terms and exclusions such as damage from improper installation or unauthorized changes.
Can several signs be managed from one place?
With compatible controllers, Wi-Fi or 4G/LTE connectivity can support centralized scheduling, monitoring and alerts across multiple display locations.
Does a fanless cabinet require special maintenance?
There are no cooling fans to replace or clean. The sealed cabinet limits dust entry; follow the installation and service guidance for the selected display configuration.
